Dedicated server management

Setting up and managing dedicated servers

How to set up a group of dedicated servers

In the customer portal, users have the option to consolidate selected dedicated servers into groups and request a pending invoice for each group. This is very convenient for tracking and planning expenses. The pending invoice will include only a specific group of dedicated servers and directly associated services (additional IPs, OS, etc.).

Before selecting the dedicated servers, you need to create the group if it doesn't already exist.

To create the group, complete the following steps:

1. In the left-hand menu, navigate to Billing → Group invoices

2. Click Create group

3. Fill the form with information about the created group and click Create

To add a dedicated server to the group, complete the following steps:

1. In the left-hand menu, navigate to Dedicated Servers → Manage

2. Choose the server and click Details

3. Click Set group

4. Select a group from the list and click Save

How to upgrade RAM

You can upgrade the RAM of an already ordered dedicated server. To do this, complete the following steps:

1. In the left-hand menu, navigate to Dedicated Servers → Manage

2. Choose the server and click Details

3. Next to the Upgrade RAM item, click Upgrade

4. Select the available RAM configuration

5. Since the RAM upgrade requires shutting down the server, choose a preferred date and time slot for the upgrade

6. Click Save

7. To confirm this action, enter your account password in the pop-up window and click Continue

How to upgrade storage drives

You can upgrade storage drives to an already ordered dedicated server. To do this, complete the following steps:

1. In the left-hand menu, navigate to Dedicated Servers → Manage

2. Choose the server and click Details

3. Next to the Disk upgrade item, click Upgrade

4. In the opened window, choose an empty storage drive slot and click Assign drive to select available HDD/SDD drives or select the default option, which in this example is the 1TB SATA

5. Choose a preferred date and time slot for the upgrade

6. Click Order upgrade

7. To confirm this action, enter your account password in the pop-up window and click Continue

Replacing a disk in software RAID (mdadm)

mdadm is the primary command for managing software RAID in Linux, allowing you to perform tasks like disk replacement and RAID recovery. It also enables you to create, add, remove, and manage RAID arrays.

Before performing mdadm command, it's essential to check the current RAID array status and identify any failed disks. The cat /proc/mdstat command is used for this purpose. It helps determine if the RAID is active, the status of the disks, and the overall health of the array. This step is critical before replacing a disk or recovering the RAID.

How to determine the current state of an array using mdstat

The /proc/mdstat file contains information about configured and functioning virtual disks.

1. To determine the current state of an array, run the command:

   cat /proc/mdstat

   For a well-functioning disk array, the command output will look like this:

   cat /proc/mdstat
   Personalities : [raid1] [linear] [multipath] [raid0] [raid6] [raid5] [raid4] [raid10]
   md1 : active raid1 sda3[0] sdb3[1]
         976139264 blocks super 1.2 [2/2] [UU]
         bitmap: 8/8 pages [32KB], 65536KB chunk

   md0 : active raid1 sda2[0] sdb2[1]
         487424 blocks super 1.2 [2/2] [UU]

   unused devices: <none>

   The [2/2] [UU] mark next to each virtual disk indicates that the array is operational and that all physical disks are detected. Each U letter represents one of the drives in the array.

2. Check the current partitioning of disks by using the lsblk command

   lsblk
   NAME                       MAJ:MIN RM   SIZE RO TYPE  MOUNTPOINT
   sda                          8:0    0 111.8G  0 disk
   ├─sda1                       8:1    0     1M  0 part
   ├─sda2                       8:2    0   477M  0 part
   │ └─md0                      9:0    0   476M  0 raid1 /boot
   └─sda3                       8:3    0 111.3G  0 part
     └─md1                      9:1    0 111.3G  0 raid1
       ├─U1554374860I0-rootfs 253:0    0 109.4G  0 lvm   /
       └─U1554374860I0-swap   253:1    0   1.9G  0 lvm   [SWAP]
   sdb                          8:16   0 111.8G  0 disk
   ├─sdb1                       8:17   0     1M  0 part
   ├─sdb2                       8:18   0   477M  0 part
   │ └─md0                      9:0    0   476M  0 raid1 /boot
   └─sdb3                       8:19   0 111.3G  0 part
     └─md1                      9:1    0 111.3G  0 raid1
       ├─U1554374860I0-rootfs 253:0    0 109.4G  0 lvm   /
       └─U1554374860I0-swap   253:1    0   1.9G  0 lvm   [SWAP]


   In the command output, you will see physical disks, such as sda and sdb, as well as the logical partitions of the OS. This can be useful for subsequent diagnostics and partition copying.

Replacing a failed disk in RAID1

If a disk in the array fails, the server will continue to operate because it is configured with RAID. However, the disk should be replaced.

1. To check the current state of the array, run the command:

   cat /proc/mdstat

   For a malfunctioning disk array, the command output will look like this:

   cat /proc/mdstat
   Personalities : [linear] [multipath] [raid0] [raid1] [raid6] [raid5] [raid4] [raid10]
   md1 : active raid1 sda3[1]
         116663296 blocks super 1.2 [2/1] [_U]
         bitmap: 1/1 pages [4KB], 65536KB chunk

   md0 : active raid1 sda2[1]
         487424 blocks super 1.2 [2/1] [_U]

   unused devices: <none>

   The output will indicate that the array and the disk in slot #0 are not detected. This can be identified by the values [2/1] and [_U] in the output.

   This can also be checked using the lsblk command:

   lsblk
   NAME                       MAJ:MIN RM   SIZE RO TYPE  MOUNTPOINT
   sda                          8:0    0 111.8G  0 disk
   ├─sda1                       8:1    0     1M  0 part
   ├─sda2                       8:2    0   477M  0 part
   │ └─md0                      9:0    0   476M  0 raid1 /boot
   └─sda3                       8:3    0 111.3G  0 part
     └─md1                      9:1    0 111.3G  0 raid1
       ├─U1554374860I0-rootfs 253:0    0 109.4G  0 lvm   /
       └─U1554374860I0-swap   253:1    0   1.9G  0 lvm   [SWAP]


   One of the disks is missing and undetectable.

2. Initiate disk replacement by contacting support

3. After disk replacement, run the command lsblk to check whether the drive is detected and to verify the state of the array

   lsblk
   sda                          8:0    0 223.6G  0 disk
   sdb                          8:16   0 111.8G  0 disk
   ├─sdb1                       8:17   0     1M  0 part
   ├─sdb2                       8:18   0   477M  0 part
   │ └─md0                      9:0    0   476M  0 raid1 /boot
   └─sdb3                       8:19   0 111.3G  0 part
     └─md1                      9:1    0 111.3G  0 raid1
       ├─U1554374860I0-rootfs 253:0    0 109.4G  0 lvm   /
       └─U1554374860I0-swap   253:1    0   1.9G  0 lvm   [SWAP]


   The output will show that the new disk is defined as sda without partitioning and is not included in the array.

4. Run mdstat command and check the output. There will be an indication that sda is not included in the array

   cat /proc/mdstat
   md0 : active raid1 sdb2[1]
         487424 blocks super 1.2 [2/1] [_U]

   md1 : active raid1 sdb3[1]
         116663296 blocks super 1.2 [2/1] [_U]
         bitmap: 1/1 pages [4KB], 65536KB chunk

   unused devices: <none>

5. Copy the partitioning from the sdb disk to sda using the following command:

   sfdisk -d /dev/sdb |sfdisk --force /dev/sda

   After copying the partitions, the output of lsblk command will look like this:

   lsblk
   NAME                       MAJ:MIN RM   SIZE RO TYPE  MOUNTPOINT
   sda                          8:0    0 223.6G  0 disk
   ├─sda1                       8:1    0     1M  0 part
   ├─sda2                       8:2    0   477M  0 part
   └─sda3                       8:3    0 111.3G  0 part
   sdb                          8:16   0 111.8G  0 disk
   ├─sdb1                       8:17   0     1M  0 part
   ├─sdb2                       8:18   0   477M  0 part
   │ └─md0                      9:0    0   476M  0 raid1 /boot
   └─sdb3                       8:19   0 111.3G  0 part
     └─md1                      9:1    0 111.3G  0 raid1
       ├─U1554374860I0-rootfs 253:0    0 109.4G  0 lvm   /
       └─U1554374860I0-swap   253:1    0   1.9G  0 lvm   [SWAP]


6. Add a new disk to the array using the following commands:

   mdadm --manage /dev/md0 --add /dev/sda2

   mdadm --manage /dev/md1 --add /dev/sda3

7. To ensure that everything is copied and that the disk is added to the array, use the command lsblk. Data synchronization will start automatically.

   lsblk
   NAME                       MAJ:MIN RM   SIZE RO TYPE  MOUNTPOINT
   sda                          8:0    0 223.6G  0 disk
   ├─sda1                       8:1    0     1M  0 part
   ├─sda2                       8:2    0   477M  0 part
   │ └─md0                      9:0    0   476M  0 raid1 /boot
   └─sda3                       8:3    0 111.3G  0 part
     └─md1                      9:1    0 111.3G  0 raid1
       ├─U1554374860I0-rootfs 253:0    0 109.4G  0 lvm   /
       └─U1554374860I0-swap   253:1    0   1.9G  0 lvm   [SWAP]
   sdb                          8:16   0 111.8G  0 disk
   ├─sdb1                       8:17   0     1M  0 part
   ├─sdb2                       8:18   0   477M  0 part
   │ └─md0                      9:0    0   476M  0 raid1 /boot
   └─sdb3                       8:19   0 111.3G  0 part
     └─md1                      9:1    0 111.3G  0 raid1
       ├─U1554374860I0-rootfs 253:0    0 109.4G  0 lvm   /
       └─U1554374860I0-swap   253:1    0   1.9G  0 lvm   [SWAP]


   The output will indicate that sda is included in the array and synchronization is in progress

   cat /proc/mdstat
   Personalities : [raid1] [linear] [multipath] [raid0] [raid6] [raid5] [raid4] [raid10]
   md0 : active raid1 sda2[2] sdb2[1]
         487424 blocks super 1.2 [2/2] [UU]

   md1 : active raid1 sda3[2] sdb3[1]
         116663296 blocks super 1.2 [2/1] [_U]
         [>....................]  recovery =  4.6% (5477632/116663296) finish=9.4min speed=195629K/sec
         bitmap: 1/1 pages [4KB], 65536KB chunk

   unused devices: <none>

8. To track the progress of data synchronization, use the following command:

   watch cat /proc/mdstat

9. Install the loader to allow the system to boot from both disks in the future:

   • For Ubuntu:

     grub-install /dev/sda
     update-grub

   • For CentOS:

     /sbin/grub2-install /dev/sda
     update-grub

Replacing disks with ones of bigger size in RAID1

You can replace the disks with larger ones and retain the data on them. In addition to replacing the disk, you will need to expand the partitions one by one.

The process will be as follows:

1. Check the state of an array

2. Initiate the first disk replacement by contacting support

3. Synchronize the array and install the loader on the first disk

4. Initiate the second disk replacement by contacting support

5. Synchronize the array and install the loader on the second disk

6. Make sure that the OS is loaded from both disks (optionally)

Replacing the first disk

1. Once you have checked that the disks are in good condition, initiate the replacement of one of the disks by contacting support

2. Check the current state of the array using the mdstat command:

   cat /proc/mdstat
   Personalities : [raid1] [linear] [multipath] [raid0] [raid6] [raid5] [raid4] [raid10]
   md1 : active raid1 sda3[0] sdb3[1]
         976139264 blocks super 1.2 [2/1] [U_]
         bitmap: 8/8 pages [32KB], 65536KB chunk

   md0 : active raid1 sda2[0] sdb2[1]
         487424 blocks super 1.2 [2/1] [U_]

   unused devices: <none>

   The output shows the arrays and indicates that the disk in slot #1 is not added to the array. This can be identified by the values [2/1] and [_U] in the output.

3. This can be further confirmed by using the lsblk command:

   lsblk
   NAME                       MAJ:MIN RM   SIZE RO TYPE  MOUNTPOINT
   sda                          8:0    0 931.5G  0 disk
   ├─sda1                       8:1    0     1M  0 part
   ├─sda2                       8:2    0   477M  0 part
   │ └─md0                      9:0    0   476M  0 raid1 /boot
   └─sda3                       8:3    0   931G  0 part
    └─md1                      9:1    0 930.9G  0 raid1
      ├─U1557477497I0-rootfs 253:0    0   929G  0 lvm   /
      └─U1557477497I0-swap   253:1    0   1.9G  0 lvm   [SWAP]
   sdb                          8:16   0   1.8T  0 disk


   The output will show that the sdb disk does not have any partitions.

4. Copy the partitioning from sda to sdb using the following command:

   sfdisk -d /dev/sda |sfdisk --force /dev/sdb

   After copying the partitioning, the output of the lsblk command will look as follows:

   lsblk
   NAME                       MAJ:MIN RM   SIZE RO TYPE  MOUNTPOINT
   sda                          8:0    0 931.5G  0 disk
   ├─sda1                       8:1    0     1M  0 part
   ├─sda2                       8:2    0   477M  0 part
   │ └─md0                      9:0    0   476M  0 raid1 /boot
   └─sda3                       8:3    0   931G  0 part
     └─md1                      9:1    0 930.9G  0 raid1
       ├─U1557477497I0-rootfs 253:0    0   929G  0 lvm   /
       └─U1557477497I0-swap   253:1    0   1.9G  0 lvm   [SWAP]
   sdb                          8:16   0   1.8T  0 disk
   ├─sdb1                       8:17   0     1M  0 part
   ├─sdb2                       8:18   0   477M  0 part
   └─sdb3                       8:19   0   931G  0 part


   The partitioning has been successfully copied, but the size of the sdb3 partition is 931GB instead of the maximum available 1.8TB.

5. To fix it, delete this partition and recreate it using the following command:

   fdisk /dev/sdb # - indicate which disk to work with
   d # - deleting
   3 # - choosing the partition to be deleted
   n # - creating a new partition
   p # - indicate that it will be the primary partition
   Select the standard parameters for the partition size and enter the "t" command to change the partition type. The partition code is 8e.
   w # - save changes

6. Check the partitioning again to make sure that sdb3 has expanded to 1.8TB using the lsblk command

   lsblk
   NAME                       MAJ:MIN RM   SIZE RO TYPE  MOUNTPOINT
   sda                          8:0    0 931.5G  0 disk
   ├─sda1                       8:1    0     1M  0 part
   ├─sda2                       8:2    0   477M  0 part
   │ └─md0                      9:0    0   476M  0 raid1 /boot
   └─sda3                       8:3    0   931G  0 part
    └─md1                      9:1    0 930.9G  0 raid1
      ├─U1557477497I0-rootfs 253:0    0   929G  0 lvm   /
      └─U1557477497I0-swap   253:1    0   1.9G  0 lvm   [SWAP]
   sdb                          8:16   0   1.8T  0 disk
   ├─sdb1                       8:17   0     1M  0 part
   ├─sdb2                       8:18   0   477M  0 part
   └─sdb3                       8:19   0   1.8T  0 part


7. Add a new disk to the array:

   mdadm --manage /dev/md0 --add /dev/sdb2

   mdadm --manage /dev/md1 --add /dev/sdb3

Synchronizing an array and installing the loader on the first disk

1. To ensure that everything is copied and the disk is added to the array, run the lsblk command. Data synchronization will start automatically

   lsblk
   NAME                       MAJ:MIN RM   SIZE RO TYPE  MOUNTPOINT
   sda                          8:0    0 931.5G  0 disk
   ├─sda1                       8:1    0     1M  0 part
   ├─sda2                       8:2    0   477M  0 part
   │ └─md0                      9:0    0   476M  0 raid1 /boot
   └─sda3                       8:3    0   931G  0 part
     └─md1                      9:1    0 930.9G  0 raid1
       ├─U1557477497I0-rootfs 253:0    0   929G  0 lvm   /
       └─U1557477497I0-swap   253:1    0   1.9G  0 lvm   [SWAP]
   sdb                          8:16   0   1.8T  0 disk
   ├─sdb1                       8:17   0     1M  0 part
   ├─sdb2                       8:18   0   477M  0 part
   │ └─md0                      9:0    0   476M  0 raid1 /boot
   └─sdb3                       8:19   0   1.8T  0 part
     └─md1                      9:1    0 930.9G  0 raid1
       ├─U1557477497I0-rootfs 253:0    0   929G  0 lvm   /
       └─U1557477497I0-swap   253:1    0   1.9G  0 lvm   [SWAP]


   After checking the mdstat command output, it will indicate that sda is included in the array and synchronization is in progress

   cat /proc/mdstat
   Personalities : [linear] [multipath] [raid0] [raid1] [raid6] [raid5] [raid4] [raid10]
   md1 : active raid1 sdb3[2] sda3[0]
         976139264 blocks super 1.2 [2/1] [U_]
         [============>........]  recovery = 61.7% (602340928/976139264) finish=47.9min speed=129920K/sec
         bitmap: 5/8 pages [20KB], 65536KB chunk

   md0 : active raid1 sdb2[2] sda2[0]
         487424 blocks super 1.2 [2/2] [UU]

   unused devices: <none>

2. To track the progress of data synchronization, use the following command:

   watch cat /proc/mdstat

3. Install the boot loader to allow the system to boot from both disks in the future:

   • For Ubuntu:

     grub-install /dev/sda
     update-grub

   • For CentOS:

     /sbin/grub2-install /dev/sda
     update-grub

Replacing the second disk

1. After the arrays are synchronized, initiate the second disk replacement (in this case, the sda disk)

2. After the replacement, copy the partitioning from sdb to sda:

   sfdisk -d /dev/sda |sfdisk --force /dev/sdb

3. Add the sda disk to the array using the following commands:

   mdadm --manage /dev/md0 --add /dev/sda2

   mdadm --manage /dev/md1 --add /dev/sda3

4. Run the lsblk command. The output will show that the sda3 partition now also has a size of 1.8TB:

   lsblk
   NAME                       MAJ:MIN RM   SIZE RO TYPE  MOUNTPOINT
   sda                          8:0    0   1.8T  0 disk
   ├─sda1                       8:1    0     1M  0 part
   ├─sda2                       8:2    0   477M  0 part
   │ └─md0                      9:0    0   476M  0 raid1 /boot
   └─sda3                       8:3    0   1.8T  0 part
     └─md1                      9:1    0 930.9G  0 raid1
       ├─U1557477497I0-rootfs 253:0    0   929G  0 lvm   /
       └─U1557477497I0-swap   253:1    0   1.9G  0 lvm   [SWAP]
   sdb                          8:16   0   1.8T  0 disk
   ├─sdb1                       8:17   0     1M  0 part
   ├─sdb2                       8:18   0   477M  0 part
   │ └─md0                      9:0    0   476M  0 raid1 /boot
   └─sdb3                       8:19   0   1.8T  0 part
     └─md1                      9:1    0 930.9G  0 raid1
       ├─U1557477497I0-rootfs 253:0    0   929G  0 lvm   /
       └─U1557477497I0-swap   253:1    0   1.9G  0 lvm   [SWAP]


5. Expand the virtual disks, ensuring that the disk has been successfully added to the array using the following commands:

   mdadm --grow --size=max /dev/md0
   pvresize /dev/md0
   mdadm --grow --size=max /dev/md1
   pvresize /dev/md1

6. Define LVM partitions using lvscan command

   ACTIVE            '/dev/U1557477497I0/
   ACTIVE            '/dev/U1557477497I0/rootfs'


7. Expand the rootfs partition to the maximum using following command:

   lvextend -l +100%FREE /dev/U1557477497I0/rootfs

Synchronizing an array and installing the loader on the second disk

To ensure that the system can boot from both disks, install the bootloader:

• For Ubuntu:

  grub-install /dev/sda
  update-grub

• For CentOS:

  /sbin/grub2-install /dev/sda
  update-grub

Wait for array synchronization.

How to reinstall OS

To reinstall OS on a dedicated server, complete the following steps:

1. In the left-hand menu, navigate to Dedicated Servers → Manage

2. Choose the server and click Details

3. Under the Disk upgrade item, click Reinstall

4. Select the authentication methods: SSH key and/or Password

• SSH key: in the SSH key section, tick the box next to the existing SSH keys that will be used for authentication. If there are no SSH keys listed, generate a new one by clicking + Generate new SSH key or add an existing public SSH key by clicking + Add existing SSH key

• Password: after the OS reinstallation, the access credentials will be sent to the contacts with primary and technical roles via email

5. Select the OS from the list and click Reinstall

6. A warning will appear in a confirmation pop-up window stating that all data will be lost during the OS reinstallation. If you are sure, click I'm sure, reinstall OS

7. To confirm this action, enter your account password in the pop-up window and click Continue

The OS reinstallation process will begin. The status of the process will be displayed in the Details section of the dedicated server.

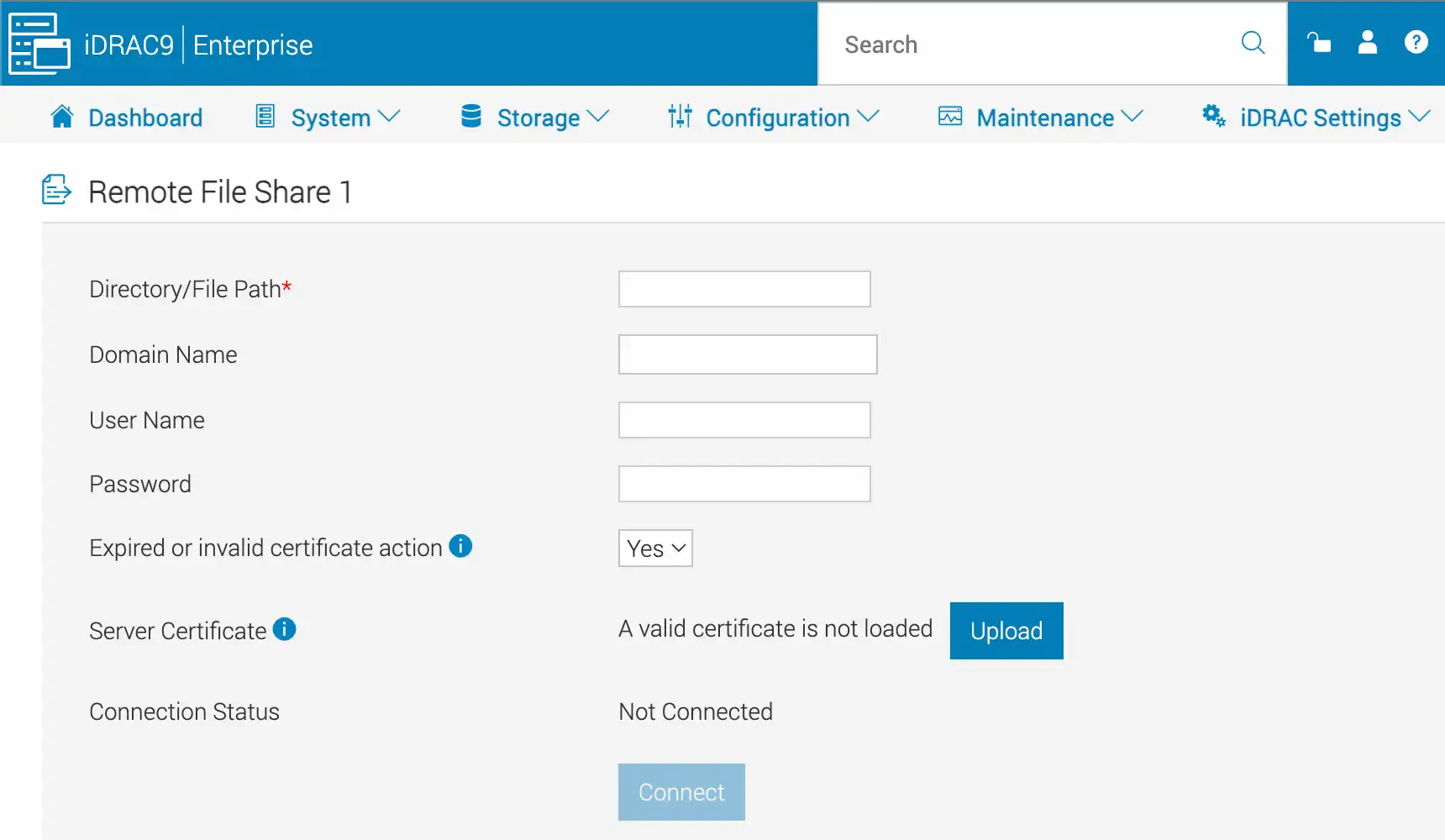

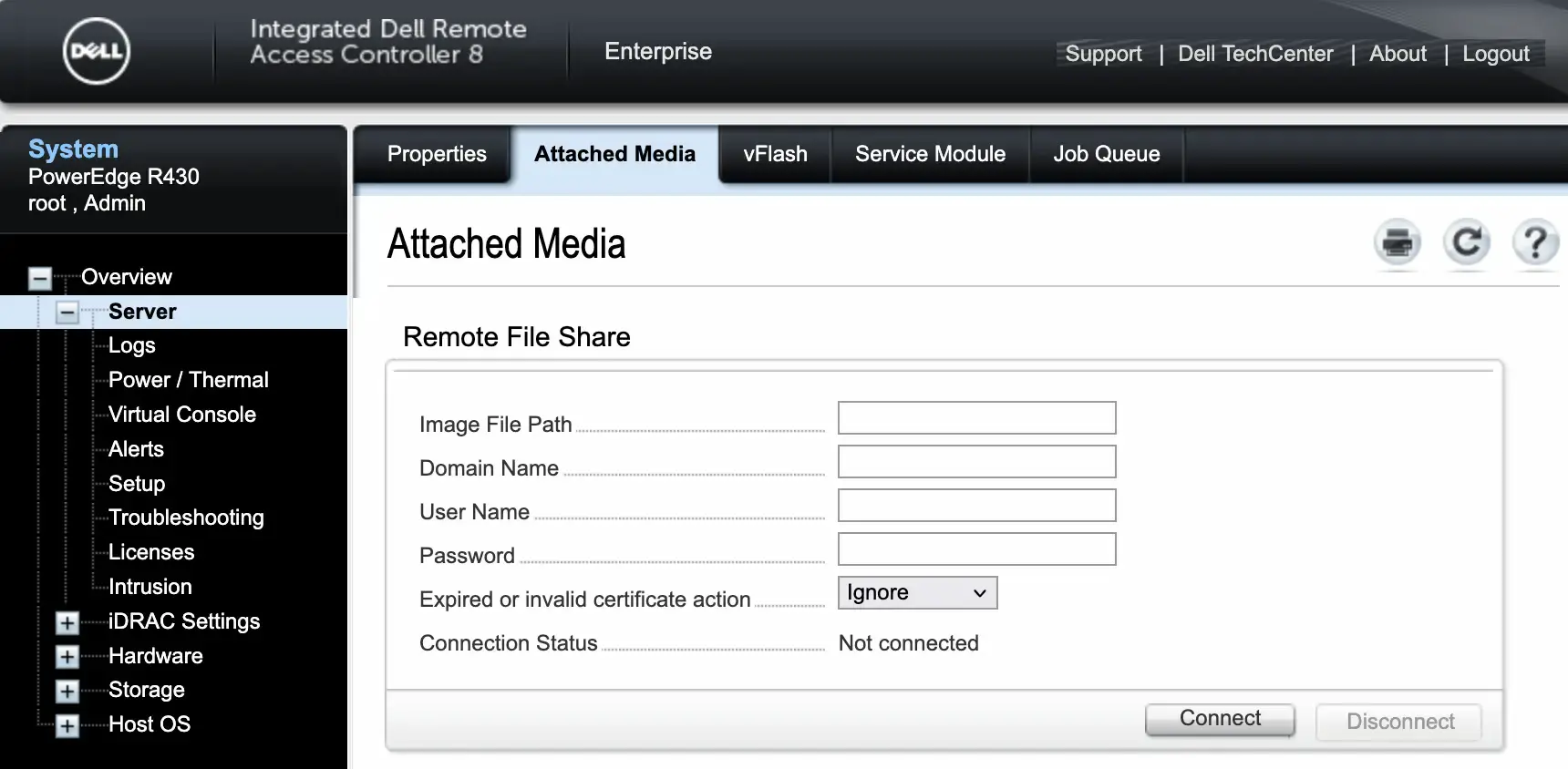

How to boot a bare-metal server into a custom ISO image remotely using iDRAC

iDRAC is a special hardware component on the motherboard of Dell servers, serving as a powerful OOB (Out-Of-Band) management tool. It allows administrators to remotely access the Dell server console and connect virtual media, even if the server's operating system is not booting or not installed.

More details on accessing iDRAC are provided in the guide How to access the OOB management of a Dell server

Enabling virtual media feature in iDRAC

The iDRAC virtual media feature allows administrators to boot servers from custom ISO images located on an SMB resource or the administrator's workstation.

To enable virtual media feature in iDRAC, complete the following steps:

1. In the iDRAC web interface, navigate to Configuration → Virtual Media

2. Set the Enabled property to Enabled value

Using a local ISO image as virtual media

You can use an ISO image located on your workstation as virtual media on the server.

To use a local ISO image as virtual media, complete the following steps:

1. Launch the Virtual Console in iDRAC and click Connect Virtual Media

2. In the window, you will be prompted to select a file. Select an ISO image and click Close

3. During startup, press F11 to select the boot device, or F2 to set the boot order via the BIOS

Security and access

Authentication methods

For remote access to the server, the customer portal offers two authentication methods.

SSH key

An SSH key is a pair of cryptographic keys used for authentication. An SSH key pair consists of a private key and a public key. The private part of the key is stored on the local machine from which the user connects to the server. The public part is stored on the server. It is recommended to use SSH keys in most cases, especially if you need maximum security.

Advantages include a high level of security, and no need to enter a password for each connection.

Password

A password can be used for quick access or in situations where using SSH keys is difficult or impractical. It is also suitable for temporary access or for users who are not familiar with setting up SSH keys. The password for server access will be sent to the contacts with primary and technical roles via email.

Advantages: easy to set up and use, and does not require additional tools for SSH key generation.

How to create an SSH key

Generate keys via the customer portal

1. In the left-hand menu of the customer portal, navigate to Identity and Access and select SSH & GPG keys

2. Click Create

3. Specify the SSH key name in the Name field, select Generate new SSH key and click Create

A new private SSH key will be generated.

Carefully copy the key to ensure all characters are accurately transferred and pasted into a file on your local machine. Make sure to save the SSH key on your local machine in a secure location. Use this key when ordering new dedicated servers or reinstalling the OS on an existing server by selecting SSH key from the list created in the customer portal. The public part will be automatically generated and added to the dedicated server.

Generate keys on a local machine

You can also generate a new SSH key pair directly on your local machine. To do so, refer to the article How to create a new SSH key pair.

How to add an existing SSH key to the server

To connect to the server via SSH, you must have a public key on the server. Adding an SSH key to the server via the customer portal is only possible during the installation or reinstallation of the OS. In all other cases, this can be done via the console.

Linux based systems

1. Open a terminal on your local machine

2. Copy the public key to the server using the following command:

   ssh-copy-id -i path_to_file/id_rsa.pub username@server_ip

   Replace:

   • path_to_id_rsa.pub with the full path to the id_rsa.pub key on your local computer

   • username with your actual username on the server

   • server_ip with the server's IP address

3. Press Enter and type the password

Your public key will be added to the server.

Windows

To add an existing SSH key to a Windows-based server, complete the following steps:

1. Open the command prompt on your local computer

2. Copy the public key to the server by using the following command:

   scp path_to_file\your_key.pub username@server_ip:C:\Users\username\.ssh\authorized_keys

   Replace:

   • path_to_file\your_key.pub with the full path to the public key on the local computer

   • username with your actual username on the server

   • server_ip with the server's IP address

3. Press Enter and type the password

Your public key will be added to the server.

To check the permissions, complete the following steps:

1. Connect to the server via RDP or other remote access methods

2. Open a PowerShell on the server

3. Retrieve the access control list (ACL) of the authorized_keys file:

   Get-Acl C:\Users\<username>\.ssh\authorized_keys | Format-List

4. To display the file permissions for the authorized_keys file, use this command:

   icacls C:\Users\<username>\.ssh\authorized_keys

   Replace <username> with the actual username for which you want to check the SSH file permissions

How to connect to the server

There are various ways to remotely connect to a dedicated server, using SSH, RDP (for Windows), or VNC.

SSH

SSH is a cryptographic network protocol that allows users to securely access a server over an unsecured network. This protocol refers to the utilities that implement the SSH protocol and is available on most operating systems. It supports various authentication methods, such as password, public and private keys.

To authenticate on the server using the generated SSH key, you must first add it to the server. Instructions are provided here.

To connect to a remote server via SSH, use the SSH utility on your local machine. On macOS and Linux, you can access this utility via the Terminal. On Windows, use PowerShell.

Before connecting to the server, you will need its IP address and login credentials:

• IP address: public and private IP addresses can be found on the server details page in the customer portal. Use the public IP address of your server if you're connecting via the internet

• Credentials: username and password, or username and private key. If you have not provided a public key when ordering a server, an automatically generated password will be sent to you via email. For a newly provisioned dedicated server, the username is root

Password authentication

To authenticate using a password, run the following command and enter the password sent to your email.

ssh username@server_ip_address

Key-based authentication

To authenticate using a key, use the private key from the pair that corresponds to the public key you set up for the server.

Usually, SSH keys are stored in the .ssh subdirectory of the user's home directory. Assuming the key file is named id_rsa, the command will look like this:

ssh -i ~/.ssh/id_rsa username@server_ip_address

Note that id_rsa is a default file name for a private key when you generate key pair with the ssh-keygen utility. Your actual key may have another name.

When using the key for the first time on your local machine, the console will display a warning that the key is being used for the first time and will ask if you want to proceed with the given fingerprint.

Are you sure you want to continue connecting (yes/no/[fingerprint])?

Type yes and press Enter.

You will gain access to the server without being prompted for a password.

"Permissions too open" error

When using a key file for the first time, you might encounter an error from SSH stating:

Permissions for [the key file] are too open

Use the following command to set more restrictive file permissions for the key file under macOS and Linux:

chmod 600 ~/.ssh/id_rsa

Use the following series of commands to change file permissions in Windows PowerShell:

#Extracts username of the current user
[String] ${stUserDomain},[String] ${stUserAccount} = [System.Security.Principal.WindowsIdentity]::GetCurrent().Name.split("\")

#Grants full permissions to the current user
icacls $home/.ssh/id_rsa /grant:r ${stUserAccount}:F

#Removes inherited permissions
icacls $home/.ssh/id_rsa /inheritance:r

How to connect to the server via SSH on a Windows-based system

You can use SSH clients like PuTTY or the built-in OpenSSH Client (available with Windows 10 and later).

1. Prepare connection details and ensure you have the server's IP address or domain name, username, and password (or a private key for authentication).

2. Launch the SSH client

   If using the Putty client, ensure the connection type is set to SSH and the port is 22. Then click Open

3. Use the following command:

   ssh username@server_ip

   Replace:

   • username with your actual username on the server

   • server_ip with the server's IP address or domain name

4. Complete authentication:

   • If using a password, enter it when prompted

   • If using SSH keys, specify the path to the private key with the -i option:

     ssh -i path_to_your_private_key username@hostname_ip

5. If you trust the connection, confirm the connection by typing yes and pressing Enter

Once connected, you can run commands on the server through the terminal.

VNC console

A VNC (Virtual Network Computing) console is a remote management tool that allows users to access and control their servers' graphical interface remotely over the internet. This enables users to perform server maintenance tasks, install updates and software, and resolve issues even if the operating system does not boot or is not installed.

Dell servers use the Integrated Dell Remote Access Controller (iDRAC). In the customer portal, there is a VNC console that provides access to the server's console using VNC technology, independent of the Java/HTML5 console provided directly by iDRAC.

To connect to the server using VNC, complete the following steps:

1. In the left-hand menu, navigate to Dedicated Servers → Manage

2. In the My servers section, choose the server and click Details

3. Click VNC console

4. Enter your account password in the pop-up window and click Continue. A screen with the console will open. Use the icon ▹ to open a sidebar with VNC console control elements.

RDP

RDP (Remote Desktop Protocol) from Microsoft is designed for remote access to the graphical interface of Windows systems. It is used for remote administration, technical support, and working with applications.

To connect to the server via RDP, click here.

User data

What is user data?

User data refers to the user-specific configuration parameters of the server's operating system. The primary use of user data is to automate server settings. These parameters are defined during the operating system installation phase and are specified as cloud-config scripts in a text file with YAML syntax or as bash scripts. While cloud-config scripts are primarily used for Linux-based systems, Windows-based systems can achieve similar automation using PowerShell scripts. More detailed information can be found in the cloud-init documentation and Microsoft PowerShell documentation.

The scripts are automatically encoded in Base64 and sent to the server, where they are executed by the cloud-init agent upon the first boot of the operating system. They are not re-applied on subsequent reboots of the same server.

In the scripts, you can specify both individual configuration parameters of the operating system and entire sequences of parameters. For example:

• Script 1: Sets the timezone and locale

  Cloud-config

  #cloud-config
  # Sets the timezone to UTC
  timezone: "Etc/UTC"

  # Verifies the change
  runcmd:
    - timedatectl set-timezone UTC

  # Sets the system locale to en-US
  locale: "en_US.UTF-8"

  Bash script

  #!/bin/bash

  # Sets the timezone to UTC
  timedatectl set-timezone UTC

  # Verifies the change
  timedatectl

  # Sets the system locale to en-US
  localectl set-locale LANG=en_US.UTF-8
  localectl set-keymap us

• Script 2: Installs a set of packages

  Cloud-config

  #cloud-config

  #Updates the package list
  package_update: true

  #Upgrades all installed packages
  package_upgrade: true

  #Installs specified packages, in this case,
  #nginx, mysql-server, and apache2
  packages:
  - nginx
  - mysql
  - apache2


  #Sets up a basic page for an Apache web server
  write_files:
    - path: /var/www/html/index.html
      content: |
        <html>
        <head><title>Welcome</title></head>
        <body><h1>Welcome to your dedicated server!</h1>.</body>
        </html>


  #Executes commands after package installation to start
  #and enable services at system boot.
  runcmd:
    - systemctl start nginx
    - systemctl enable nginx
    - systemctl start mysql
    - systemctl enable mysql
    - systemctl enable apache2
    - systemctl start apache2

  Bash script

  #!/bin/bash

  # Updates the package list
  apt-get update

  # Upgrades all installed packages
  apt-get -y upgrade

  # Installs specified packages
  apt-get install -y nginx mysql-server apache2

  # Sets up a basic page for an Apache web server
  cat <<EOF > /var/www/html/index.html
  <html>
  <head><title>Welcome</title></head>
  <body><h1>Welcome to your dedicated server!</h1>.</body>
  </html>
  EOF

  #Executes commands after package installation to start
  #and enable services at system boot
  systemctl start nginx
  systemctl enable nginx
  systemctl start mysql
  systemctl enable mysql
  systemctl start apache2
  systemctl enable apache2

• Script 3: Configures the system

  Cloud-config

  #cloud-config

  # Sets the hostname
  hostname: my-dedicated-server

  # Creates users and adds SSH keys
  users:
  # User 1
    - name: username
      sudo: ['ALL=(ALL) NOPASSWD:ALL']
      groups: sudo
      home: /home/username
      shell: /bin/bash
      lock_passwd: false
      passwd: $6$rounds=4096$abcdefghijklmnopqrstuv...
      ssh-authorized-keys:
        - ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAQEA7...

  # User 2
    - name: new_username
      sudo: ['ALL=(ALL) NOPASSWD:ALL']
      groups: sudo
      home: /home/new_username
      shell: /bin/bash
      lock_passwd: false
      passwd: $6$rounds=4096$abcdefghijklmnopqrstuv...
      ssh-authorized-keys:
        - ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAQEA7...


  Bash script

  #!/bin/bash

  # Sets the hostname
  hostnamectl set-hostname my-dedicated-server

  # Creates users and sets up SSH keys
  # User 1
  username1="username"
  password1="your_hashed_password1"
  ssh_key1="ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAQEA7..."

  #-m: Creates a home directory for the user.
  #-s /bin/bash: Sets the shell for the user.
  useradd -m -s /bin/bash $username1
  echo "$username1:$password1" | chpasswd -e
  usermod -aG sudo $username1

  mkdir -p /home/$username1/.ssh
  echo $ssh_key1 > /home/$username1/.ssh/authorized_keys
  chown -R $username1:$username1 /home/$username1/.ssh
  chmod 700 /home/$username1/.ssh
  chmod 600 /home/$username1/.ssh/authorized_keys

  # User 2
  username2="new_username"
  password2="your_hashed_password2"
  ssh_key2="ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAQEA7..."

  useradd -m -s /bin/bash $username2
  echo "$username2:$password2" | chpasswd -e
  usermod -aG sudo $username2

  mkdir -p /home/$username2/.ssh
  echo $ssh_key2 > /home/$username2/.ssh/authorized_keys
  chown -R $username2:$username2 /home/$username2/.ssh
  chmod 700 /home/$username2/.ssh
  chmod 600 /home/$username2/.ssh/authorized_keys

• Script 4: Enables/installs SSH on Windows

  PowerShell


  Start-Transcript -path C:\postinstall.log -append

  #Activates the administrator account:
  net user Administrator /active:yes

  #Disables administrator password expiration:
  wmic UserAccount where Name='Administrator' set PasswordExpires=False

  Disable-NetAdapterBinding -Name "*" -ComponentID ms_tcpip6

  # RDP switch port
  # https://learn.microsoft.com/en-us/windows-server/remote/remote-desktop-services/clients/change-listening-port
  $portvalue = 21337
  Set-ItemProperty -Path 'HKLM:\SYSTEM\CurrentControlSet\Control\Terminal Server\WinStations\RDP-Tcp' -name "PortNumber" -Value $portvalue
  New-NetFirewallRule -DisplayName 'RDPPORTLatest-TCP-In' -Profile 'Public' -Direction Inbound -Action Allow -Protocol TCP -LocalPort $portvalue
  New-NetFirewallRule -DisplayName 'RDPPORTLatest-UDP-In' -Profile 'Public' -Direction Inbound -Action Allow -Protocol UDP -LocalPort $portvalue

  # RDP AccountLockout
  # https://learn.microsoft.com/en-us/troubleshoot/windows-server/networking/configure-remote-access-client-account-lockout
  Set-ItemProperty -Path "HKLM:\SYSTEM\CurrentControlSet\Services\RemoteAccess\Parameters\AccountLockout" -Name "ResetTime (mins)" -Value "0x05"
  Set-ItemProperty -Path "HKLM:\SYSTEM\CurrentControlSet\Services\RemoteAccess\Parameters\AccountLockout" -Name "MaxDenials" -Value "10"

  # wait for internet availability
  while (!(test-connection chocolatey.org -Quiet -Count 5)) {
      sleep 5
  }

  # choco install/configuration
  Set-ExecutionPolicy Bypass -Scope Process -Force; [System.Net.ServicePointManager]::SecurityProtocol = [System.Net.ServicePointManager]::SecurityProtocol -bor 3072; iex ((New-Object System.Net.WebClient).DownloadString('https://community.chocolatey.org/install.ps1'))
  choco feature enable -n allowGlobalConfirmation
  choco allow-empty-checksums

  # sshd install/configuration
  net stop sshd
  taskkill /F /IM sshd.exe
  choco install openssh -params "/SSHServerFeature" --force

  wget "url_to_pub_key" -outfile $HOME\.ssh\authorized_keys
  wget "url_to_sshd_config_file" -outfile "%PROGRAMDATA%\ssh\sshd_config"

  Set-Service sshd -StartupType Automatic
  Restart-Service -name sshd

  Stop-Transcript

• Script 5: Replaces mirrors

  Cloud-config

  #cloud-config
  #This script replaces mirrors with mirrors.servers.com
  #for VMs operating in gp-only mode
  apt:
    preserve_sources_list: false
    primary:
      - arches: [default]
        uri: http://mirror.servers.com/debian
    security:
      - arches: [default]
        uri: http://mirror.servers.com/debian-security

  Bash script

  #!/bin/bash

  #This script replaces mirrors with mirrors.servers.com
  #for VMs operating in gp-only mode# Backup the current sources list
  cp /etc/apt/sources.list /etc/apt/sources.list.bak

  # Replace the sources list with the new mirrors
  cat < /etc/apt/sources.list
  deb http://mirror.servers.com/debian $(lsb_release -cs) main
  deb http://mirror.servers.com/debian-security $(lsb_release -cs)/updates main
  EOF

  # Update the package list
  apt-get update

• Script 6: Creates a directory and downloads files into it over the network

  Cloud-config

  #cloud-config

  #Creates a directory
  runcmd:
  - mkdir -p /run/newdir

  #Downloads files into it over the network
  - [
      wget,
      "http://example.com",
      -O,
      /run/newdir/index.html
    ]

  #Where
  #http://example.com: The URL address of the file to be downloaded.
  #-O /run/newdir/index.html: Specifies the path
  #and filename where the content will be saved.

  Bash script

  #!/bin/bash

  # Creates a directory
  mkdir -p /run/newdir

  # Downloads a file into the created directory over the network
  wget "http://example.com" -O /run/newdir/index.html

• Script 7: Configures a new user with admin rights and sets up WinRM

  Windows (Batch)

  #Activates the administrator account
  echo 'Enable Administrator user'
  net user Administrator /active:yes
  echo 'Creating %Usertname% user'

  #Creates a new user and adds them to the administrators group:
  net user %Usertname% %Password% /add
  net localgroup Administrators %Usertname% /add

  #Configures WinRM
  echo 'Starting to configure winrm'
  winrm quickconfig -q
  winrm set winrm/config/winrs '@{MaxMemoryPerShellMB="300"}'
  winrm set winrm/config '@{MaxTimeoutms="1800000"}'
  winrm set winrm/config/service '@{AllowUnencrypted="true"}'
  winrm set winrm/config/service/auth '@{Basic="true"}'
  echo 'Starting to configure firewall rules'
  netsh advfirewall firewall add rule name="WinRM 5985" protocol=TCP dir=in localport=5985 action=allow
  netsh advfirewall firewall add rule name="WinRM 5986" protocol=TCP dir=in localport=5986 action=allow
  net stop winrm
  cmd /c sc config winrm start=auto
  net start winrm
  echo "setting ExecutionPolicy"
  Set-ExecutionPolicy -ExecutionPolicy Bypass -Scope LocalMachine -Force

• Script 8: Changes the boot order

  Cloud-config

  #cloud-config
  runcmd:
  - efibootmgr -o $(efibootmgr | grep BootCurrent | cut -d' ' -f2),$(efibootmgr | grep BootOrder | cut -d' ' -f2 | cut -d',' -f1)

  Bash script

  #!/bin/sh
  efibootmgr -o $(efibootmgr | grep BootCurrent | cut -d' ' -f2),$(efibootmgr | grep BootOrder | cut -d' ' -f2 | cut -d',' -f1)

Setting user data

In the customer portal, there is a "User data" field where you can enter the script.

After the automatic installation is complete, it will no longer be possible to change the text in this field. The maximum script size without Base64 encoding is 16 KB.

Disks management

What is a disk controller?

A disk controller is a hardware device that manages the operation of hard drives and solid-state drives in a server. It facilitates communication between the server's central processing unit (CPU) and the drives, controls data reading and writing, and is responsible for RAID (Redundant Array of Independent Disks) management functions.

Why are there different number of disk and possible RAID levels?

Entry-level servers, such as the Dell PowerEdge R210, typically come with fewer disks and support less memory, which is sufficient for small business solutions. On the other hand, models like the Dell PowerEdge R730xd support a larger number of disks and greater memory capacity, offering extensive scalability for large corporate tasks.

We offer server models that support building RAID arrays at various levels. The most commonly used are RAID 0 and RAID 1.

• RAID 0: significantly boosts performance by writing data in parallel across multiple disks but does not provide data protection. Requires a minimum of 2 disks

• RAID 1: ensures data mirroring, significantly enhancing reliability but losing half of the available capacity. Requires a minimum of 2 disks

How to configure RAID

The customer portal provides the ability to configure server disks using RAID technology both when ordering a dedicated server and after provisioning one. This functionality becomes available when:

• The server chassis and the selected operating system support RAID technologies

• More than one disk of the same size is selected in the server slots

To configure RAID, complete the following steps:

1. Select the server where RAID needs to be configured

2. On the server configuration page:

• Scroll to the Operating system section if the server is being ordered

• Scroll to the Disk upgrade section and click Upgrade if the server is already ordered

3. Select the operating system if the server does not have one

4. In the RAID section:

• Automatic settings: select the RAID level for creating an array with automatic settings and proceed to step 8

• Advanced settings: leave the Advanced settings (More HDDs, custom partitioning & more) selected and scroll to the slots section

5. In the slots section, assign at least two free slots with drives of the same size and mark the checkbox next to each disk

6. Click the Build RAID button that appears

7. In the pop-up window, select the RAID level

The Make bootable option means that the operating system will be installed and boot from this RAID array

8. Click Save

9. Configure partitions if required. More details can be found here

10. Complete the server configuration by clicking the Order upgrade or Save button

11. Confirm the action in the pop-up window by clicking the I'm sure, reinstall OS button

12. Enter your account password in the pop-up window and click Continue

How to mount a disk drive

1. In the left-hand menu, navigate to Dedicated Servers → Manage

2. Choose the server and click Details

3. Next to the Disk upgrade item, click Upgrade

4. To choose a disk for mounting, find an available slot on the page and click Replace drive or choose the default disk provided by the customer portal.

5. Click Mount drive. A Disk Mount Overview section will appear, allowing you to manage the disk partitions

6. Choose a preferred date and time slot for the upgrade

7. To apply the mounting, click Order upgrade

About the disk partitions

Linux/Unix based systems

These settings show the disk space allocation on the main boot disk, including the allocation for boot files, virtual memory, and the main file system.

A mount point (target) is a location in the file system where a file system or storage device is attached.

When a drive is mounted, the operating system links its contents to a specific directory in the file system tree. This allows users and applications to interact with the data on the device as if it were part of the main file system.

Examples of mount points:

• /boot – the mount point for the partition containing boot files. This is usually a separate small partition necessary for booting the operating system. The ext4 file system is commonly used for Linux

• / – the root mount point where the entire Linux file system resides. All other files and directories are located within this hierarchical tree

• /home – often used as a mount point for a separate partition containing user home directories

• /mnt/usb – can be used for mounting USB devices such as flash drives

Mount points allow for the organization and management of access to different file systems and devices within a unified namespace.

What is a Target?

This configuration window displays the interface for setting up partitions in Linux, where you can select the mount point (target) for a new partition on a non-boot disk.

Here is a brief description of the available mount points:

• /mount/* – a general folder for mounting additional file systems or devices on a non-boot disk. Used for temporary or permanent attachment of various devices

• /home – the directory where user home directories are located. Typically used for storing user data, settings, and files

• /tmp – the directory for temporary files. The system and applications use it for temporary data storage, which can be deleted after a reboot

• /var – the directory for variable data. This includes log files, mail spools, databases, and other frequently changing files

• /var/log – a subdirectory in /var, specifically designed for storing log files. System and application logs are recorded here

• /usr – the directory for installing software and user utilities. It houses most of the system's applications and utilities

• /opt – the directory for additional software packages and applications that are not included in the standard distribution packages. Used for installing third-party software

These mount points allow you to organize and structure the file system on a non-boot disk, distributing various types of data across the appropriate directories.

When do I need to change it?

Changing the target (mount point) for a new partition may be necessary in the following cases:

1. Separating user data: mount to /home to keep user data separate from system files

2. Improving performance: mount to /var or /var/log to isolate logs and variable data, reducing load on the main system

3. Security and stability: mount /tmp on a separate partition to prevent attacks and avoid filling up the main partition

4. Disk space management: mount to /usr or /opt for additional software and applications

5. Custom storage requirements: mount to /mnt/ for applications needing dedicated storage space

6. Backup and restore: separate partitions simplify backup and restore processes

7. Multi-disk configurations: distribute data across multiple disks by mounting partitions on secondary disks, such as /mnt/data

Changing the mount point helps optimize performance, enhance security, and simplify system management.

What is swap?

Swap is a designated area on the disk that the operating system uses as additional virtual memory. This allows the server to continue operating even if the physical RAM is exhausted.

How does swap work?

When the RAM is full, the operating system moves less frequently used data from the RAM to the swap space on the disk. This frees up RAM for more critical tasks. When this data is needed again, it is moved back to the RAM.

Windows OS

In Windows, mount points perform a similar function but are organized somewhat differently compared to UNIX/Linux systems. Here are the main concepts regarding mount points in Windows:

• Drive letters: mount points are typically represented by drive letters, such as C:, D:, E:, etc. Each storage device or partition usually receives its own drive letter. For example, the main disk where the operating system is installed is often designated as C:

• Mount points: you can also use mount points to attach a new partition or disk to an existing directory in the file system. This is similar to the method used in Linux. For instance, a new disk can be attached to the directory C:\Data instead of being assigned a separate drive letter

• C:\Boot Folder: boot files are typically stored in the C:\Boot folder or other system directories such as C:\Windows\Boot

• Virtual memory (pagefile): the equivalent of the swap partition is called pagefile. It is located in the root directory of the main disk, usually as C:\pagefile.sys, and is used for virtual memory

Key points:

• Drive letters (e.g., C:, D:) are used to access main partitions and devices

• Mount points can be used to attach partitions to existing directories

• Boot files are stored in system folders (e.g., C:\Boot)

• Virtual memory is stored in the pagefile on the main disk

Thus, mount points in Windows and Linux serve similar functions but are organized and represented in different ways.

Out-of-band management (OOB)

OOB (Out-of-Band) is a method of remote server management and monitoring conducted via a separate and independent communication channel. This method provides access to the hardware integrated into the server's motherboard.

In the customer portal, there is a page where you can view and manage the OOB. It is accessible through the following steps:

1. Open the customer portal and navigate to Dedicated Servers → Manage

2. Select the server and click Details

3. Scroll to the OOB section

This section contains the configurations and credentials related to OOB.

How to access the OOB management of a Dell server

For Dell servers, OOB management is performed using iDRAC (Integrated Dell Remote Access Controller).

iDRAC offers hardware-level access to the server, allowing administrative tasks to be performed even if the primary network fails, the operating system is down, or the server is powered off. iDRAC management is available through both a web interface and a command-line interface. Key features include:

• Server power management

• Hardware sensor monitoring

• Remote console capabilities

• Access to virtual media

• Remote OS installation, including custom images

To access iDRAC, you will need the iDRAC IP address and the corresponding credentials.

Authentication in iDRAC

Authentication can be done in two ways:

• Using OOB and VPN credentials
  For security purposes, the OOB management network for your servers is isolated and accessible via VPN. Use the provided VPN credentials to connect to the OOB network, then access the iDRAC interface with the iDRAC IP address and local credentials

• Temporary 24-hour access
  For your convenience, you can temporarily enable access to the iDRAC interface of a specific server over the internet without needing to connect to the VPN. This temporary access will be active for 24 hours, but you can disable it earlier if needed

OOB and VPN credentials

To get access to iDRAC with OOB and VPN credentials, complete the following steps:

1. In the OOB section, click Credentials

2. Enter your account password and click Continue

   In the opened window, you will see the access details

3. Launch VPN on your computer using the provided credentials. In the Setup manuals section, you will find instructions for popular operating systems on how to set up and launch the VPN:

   • VPN server: the access point for connecting to the VPN. The server address and credentials are entered in the VPN client software settings. After successful connection, all data transmitted between the user's device and the VPN server will be encrypted, and the user will receive an IP address associated with this VPN server

   • Shared secret: a key used to authenticate both parties (client and server) when establishing a VPN connection. This authentication method is often used in VPN protocols such as L2TP/IPsec and IKEv2. The shared secret is usually specified in the configuration files or settings of the VPN client and server

4. Open your browser and enter the IP address for accessing the iDRAC interface of a specific server

5. Authenticate using the credentials from the OOB credentials section

Temporary 24-hour access

To get temporary 24-hour access to iDRAC with OOB credentials, complete the following steps:

1. In the OOB section, click Enable public access for 24 hours

2. In the opened window, click Enable

3. To confirm this action, enter your account password in the pop-up window and click Continue

How to disable temporary 24-hour access

When the work with iDRAC is complete, you can disable temporary access to the OOB network by clicking the Disable public access button.

How to reset OOB credentials

1. In the OOB section click Reset OOB credentials

2. Click Reset to confirm

3. In the opened window, enter your account password and click Continue

OOB credentials will be reset.

How to reset VPN credentials

1. In the OOB section, click Reset VPN credentials

2. Click Reset to confirm

3. In the opened window, enter your account password and click Continue

The VPN credentials will be reset.

How to access iDRAC

To access iDRAC, complete the following steps:

1. Type the IP address of your server's iDRAC interface into your browser's address bar. The browser will warn you about an insecure connection due to the self-signed HTTPS certificate

2. Add an exception

3. Enter the previously obtained iDRAC credentials on the iDRAC authentication page

After logging in, you will be able to manage server settings, view the service tag, use the virtual console, and mount virtual media from local or remote (SMB) images.

How to configure iDRAC to use the HTML5 plug-in for virtual console

iDRAC versions and virtual console plug-in types

iDRAC allows you to switch between Java, ActiveX and HTML5-based plugins for virtual console capabilities and virtual media access. The HTML5 plug-in is the default plug-in in iDRAC 9. IDRAC versions 7 and 8 initially had support for Java and ActiveX. HTML5 support was added in the firmware version 2.30.30.30.

Most of our DELL PowerEdge servers are of the 14th, 13th, and 12th generations, meaning iDRAC versions vary from iDRAC 9 to iDRAC 7.

How to determine the iDRAC version can be found here.

A detailed guide on how to update the iDRAC firmware can be found here.

Server maintenance

Power management via customer portal

In the customer portal, you can initiate a reboot or shutdown of the server. Special commands are sent to the PDU (Power Distribution Unit) automation, which triggers the power to the outlet connected to the server to be turned off or restored. Both the PDU and the server have built-in protection, significantly reducing the risk of software malfunctions, file system issues, or hardware failures during power outages.

When the protection is triggered, the PDU will prevent the server from rebooting or shutting down, and the notification will appear on the customer portal page:

"Power management is currently unavailable because of a running operation on the server. Please try again later."

This occurs when there is an ongoing automation task on the server or the server is in maintenance mode. This could be due to operations performed by the servers.com team or tasks initiated by the server users, such as firmware updates or failure diagnostics.

How to reboot a dedicated server

Rebooting a server may be required to resolve accumulated system errors, apply software updates or other purposes.

The server can be rebooted in two ways: via the customer portal and via the VNC console.

Customer portal

To reboot the server via the customer portal, complete the following steps:

1. In the left-hand menu, navigate to Dedicated Servers → Manage

2. Select the server and click Details

3. Scroll to the Power section and select Reboot

4. To confirm this action, enter your account password in the pop-up window and click Continue

The server will be rebooted. You can check the server status in the Status field in this section. If the status does not change, try using the Refresh button.

VNC console

To reboot the server via the VNC console, complete the following steps:

1. Open the customer portal and navigate to Dedicated Servers → Manage

2. Select the server and click Details

3. In the Details section, click VNC console and confirm your action by entering your account password in the opened window

4. In the opened console, click ▹ to open the control bar → Show Extra keys → Send Ctrl+Alt+Delete

The server will be rebooted.

How to switch off the dedicated server

Temporarily shutting the server down allows for scheduled maintenance, equipment replacement, or upgrades without risking data corruption.

The server can be switched off in two ways: via the customer portal and via the VNC console.

Customer portal

To switch off the server via the customer portal, complete the following steps:

1. Open the customer portal and navigate to Dedicated Servers → Manage

2. Select the server and click Details

3. Scroll to the Power section and select Off

4. To confirm this action, enter your account password in the pop-up window and click Continue

The server will be switched off. You can check the server status in the Status field in this section. If the status does not change, try using the Refresh button .

VNC console

To switch off the server via the VNC console, complete the following steps:

1. Open the customer portal and navigate to Dedicated Servers → Manage

2. Select the server and click Details

3. In the Details section, click VNC console and confirm your action by entering your account password in the opened window

4. In the opened console:

   • For Linux-based systems, execute the following command:

     shutdown -h

   • For Windows systems, click ▹ to open the control bar → show extra keys → click the Windows icon → shutdown

The server will be switched off.

What is rescue mode?

Rescue mode is a useful feature for dedicated and cloud servers, allowing you to diagnose, fix problems and restore server functionality in case of failures. This feature is accessible to users via the customer portal control panel.

Imagine that something went wrong with the OS configuration; for example, the GRUB loader configuration file is corrupted, and the server shows a black screen and is unable to boot:

In cases where the OS is affected by critical system errors or the server is unable to boot properly, rescue mode may come in handy.

This issue can be solved in a number of ways, one of which is using rescue mode.

How to restore a dedicated server using rescue mode

In rescue mode, the server connection occurs via a public IP address, so it's essential that the server has a configured public network to utilize this function.

To enter rescue mode, complete the following steps:

1. In the left-hand menu, navigate to Dedicated Servers → Manage

2. In the My servers section, choose the server and click Details

3. Click the Reboot to rescue button and wait for an email with temporary login credentials (this usually takes up to 10 minutes)

The email will be sent to Contacts with primary and technical roles

4. Use credentials to access the server via SSH:

   ssh 123.45.67.89 -l root
   Warning: Permanently added '123.45.67.89' (RSA) to the list of known hosts.
   root@123.45.67.89's password:
   * Welcome to DMGMTSrvInit 1.0 x86_64 [based on CentOS 6 x86_64]

   Dell OpenManage Deployment Toolkit:
   - RAID:    raidcfg
   - DRAC:    racadm4, racadm5, idracadm7
   - BIOS:    syscfg
   - SYSTEM:  omconfig, omreport, dsu

   Additional utils:
   - RAID:    mdadm
   - FS:      lvm, xfs, jfs, e2fs, nfs, ntfs, dosfs, parted, fdisk, cfdisk, sfdisk, grub
   - EDITORS: vi, nano, joe
   - SYSTEM:  dmidecode, smartmontools, testdisk, hddtemp, lshw, memtester, ipmitool
   - NETWORK: ethtool, tcpdump, mtr, traceroute, tcptraceroute, nmap, dstat
   - TOOLS:   rsync, lftp, curl, wget, nc, screen, mc, chkrootkit

   You can check speedtest files in your browser, url: http://<server ip>/


   A list of useful commands is displayed upon login

To recover the GRUB configuration file, complete the following steps:

1. Get the list of available disks and partitions using the lsblk command

   [root@dmgmtsrvinit.pxe ~]# lsblk
   NAME                              MAJ:MIN RM  SIZE RO TYPE  MOUNTPOINT
   sdb                                 8:16   0  1.8T  0 disk
   ├─sdb1                              8:17   0    1M  0 part
   ├─sdb2                              8:18   0  500M  0 part
   │ └─md127                           9:127  0  500M  0 raid1
   └─sdb3                              8:19   0  1.8T  0 part
     └─md126                           9:126  0  1.8T  0 raid1
       ├─C1500302784I0-home (dm-0)   253:0    0  1.8T  0 lvm
       ├─C1500302784I0-rootfs (dm-1) 253:1    0   10G  0 lvm
       └─C1500302784I0-swap (dm-2)   253:2    0    2G  0 lvm
   sda                                 8:0    0  1.8T  0 disk
   ├─sda1                              8:1    0    1M  0 part
   ├─sda2                              8:2    0  500M  0 part
   │ └─md127                           9:127  0  500M  0 raid1
   └─sda3                              8:3    0  1.8T  0 part
     └─md126                           9:126  0  1.8T  0 raid1
       ├─C1500302784I0-home (dm-0)   253:0    0  1.8T  0 lvm
       ├─C1500302784I0-rootfs (dm-1) 253:1    0   10G  0 lvm
       └─C1500302784I0-swap (dm-2)   253:2    0    2G  0 lvm


   Seems like disk /dev/mapper/C1500302784I0-rootfs contains the root partition and disk /dev/md127 contains /boot

2. Mount these partitions

   mkdir /mnt/root
   mount /dev/mapper/C1500302784I0-rootfs /mnt/root
   mount /dev/md127 /mnt/root/boot


   You'll also need to mount several other partitions in order to make the grub2-mkconfig command work properly:

   mount -o bind /dev /mnt/root/dev
   mount -o bind /sys /mnt/root/sys
   mount -t proc none /mnt/root/proc


3. Change the root directory using the chroot command:

   chroot /mnt/root

4. Execute the grub2-mkconfig command, which will generate new GRUB configuration file:

   [root@dmgmtsrvinit.pxe /]# grub2-mkconfig -o /boot/grub2/grub.cfg
   Generating grub configuration file ...
     WARNING: Failed to connect to lvmetad. Falling back to device scanning.
     WARNING: Failed to connect to lvmetad. Falling back to device scanning.
   Found linux image: /boot/vmlinuz-3.10.0-514.26.2.el7.x86_64
   Found initrd image: /boot/initramfs-3.10.0-514.26.2.el7.x86_64.img
   Found linux image: /boot/vmlinuz-3.10.0-514.el7.x86_64
   Found initrd image: /boot/initramfs-3.10.0-514.el7.x86_64.img
   Found linux image: /boot/vmlinuz-0-rescue-7dafe89409d74ef2a70c495f0148d7e3
   Found initrd image: /boot/initramfs-0-rescue-7dafe89409d74ef2a70c495f0148d7e3.img
     WARNING: Failed to connect to lvmetad. Falling back to device scanning.
     WARNING: Failed to connect to lvmetad. Falling back to device scanning.
   done


   The command executed successfully, apart from a few warning messages

5. Exit the chroot and shut down the server properly

   [root@dmgmtsrvinit.pxe /]# exit
   [root@dmgmtsrvinit.pxe ~]# shutdown -h now

   Broadcast message from root@dmgmtsrvinit.pxe
       (/dev/pts/0) at 18:29 ...

   The system is going down for halt NOW!
   [root@dmgmtsrvinit.pxe ~]# Connection to 123.45.67.89 closed by remote host.
   Connection to 123.45.67.89 closed.


How to exit rescue mode

As soon as recovery work is finished, click the Exit rescue mode button in the customer portal. The server will exit rescue mode and boot normally the OS installed on its disks.

The loader is working again!

How to cancel the dedicated server service

If you decide to cancel one of your dedicated servers as a service, complete the following steps:

1. In the left-hand menu, navigate to Dedicated Servers → Manage

2. In the My servers section, choose the server you wish to cancel and click Details

3. Scroll to the Services section

4. Click Cancel Service

5. Choose the date and time for the server to be unlinked from your account

   Keep in mind that the service cancellation will take effect 30 days from the cancellation date. Since service termination is irreversible, it will be impossible to recover data after the expiration. Therefore, make sure to back up your data stored on the server. You will be billed up until the service termination date. To immediately remove the server, send an email to sales@servers.com.

6. To confirm this action, click Cancel service and enter your account password in the pop-up window and click Continue

Documentation links

Please refer to the following articles for additional instructions. The instructions depend on the version of iDRAC on your server. How to determine the version of iDRAC is explained here.

iDRAC documentation references

• Remote Enterprise Systems Management website

iDRAC 7/8

• iDRAC 8/7 v2.50.50.50 User’s Guide

• How to configure iDRAC to use the HTML5 plug-in for virtual console

• Launching virtual media using virtual console

• Enabling boot once for virtual media

iDRAC 7/8/9

• Using the Virtual Media function on iDRAC6, iDRAC7, iDRAC8 and iDRAC9

• How to install the operating system on a Dell PowerEdge Server?

iDRAC 9

• iDRAC 9 Version 3.36.36.36 User's Guide

• Launching virtual media using virtual console

• Enabling boot once for virtual media

Use your server's service tag to search for user manuals for other iDRAC versions on the Dell Support website.
